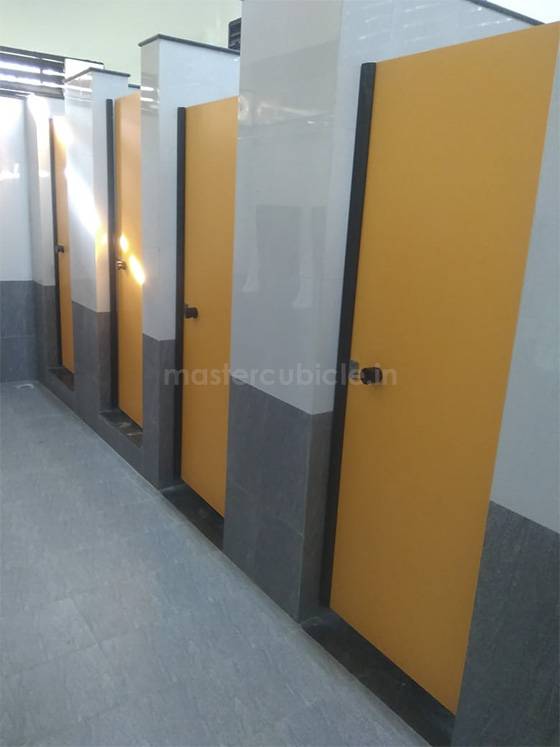

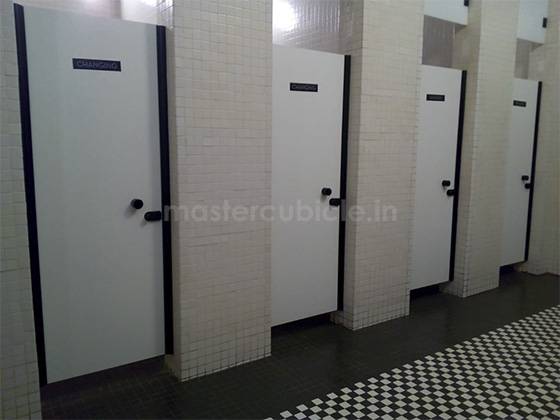

The intermediate panel is one continued panel without any joints. All intermediate panels, pilasters and doors shall be 12mm thk with edges chamfered. The solid compact laminate (Phenolic Core Board) is based on thermosetting resins, homogeneously reinforced with

cellulosefibres. Top surface on both sides is melamine coated which is scratch and impact resistant.

All pilasters are to be supported by adjustable foot and non corrosive inserts. Top rail and wall fixing with and exterior polyamide coating guarantees resistance to breakage, heat, humidity and chemicals. The base of the adjustable foot will be anchored to the floor with a clearance height of 100mm. Aluminum U- Channel will be used for the fixing of intermediate panels to the wall.
